How to tie the Carrick Bend

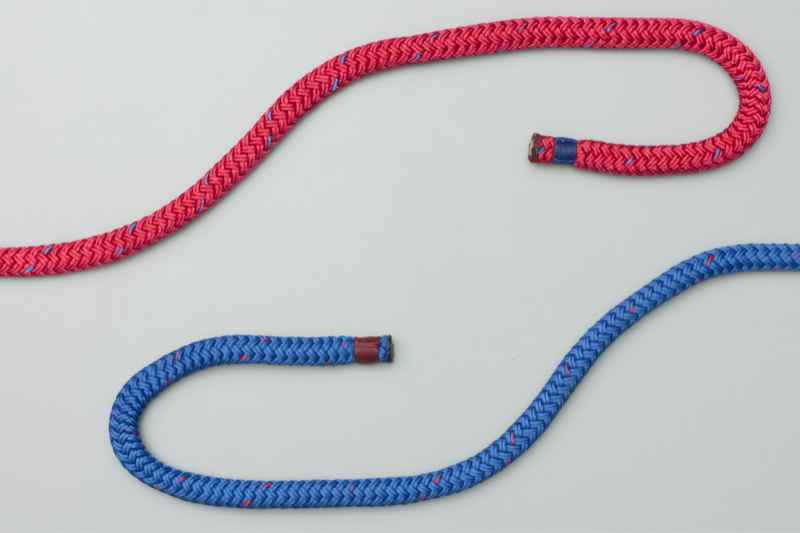

Form a loop in one end (blue) with the bitter end under the standing end. Pass the other end (green) under the blue bitter end. Tuck the green standing end under the blue loop. Thread the green bitter end under itself and pull the standing ends to obtain the appearance under load.

More details about the The Carrick Bend

The Carrick Bend

Uses: The Carrick Bend (ABOK # 1439, p 263) joins two ropes together. It used to be widely used to join large hawsers. To preserve the attractive shape of the knot, the bitter end of each hawser was often fastened with a seizing back to its own standing end. This seizing, however, is not required for safety.

Structure: The knot curls up under strain and the attractive, mat-like appearance vanishes. It is important that the bitter ends lie diagonally opposite each other; otherwise an intermittent pull will gradually work the knot towards the bitter ends until it is undone!

Place: Because the Carrick Bend is reliable and has the enormous advantage of being easy to undo, it probably deserves to be used more often. However, it is slightly awkward to assemble and it is too easy to make a mistake and find you have both bitter ends on the same side of the knot.

Disclaimer: Any activity that involves ropes is potentially hazardous. Lives may be at risk - possibly your own. Considerable attention and effort have been made to ensure that these descriptions are accurate. However, many critical factors cannot be controlled, including: the choice of materials; the age, size, and condition of ropes; and the accuracy with which these descriptions have been followed. No responsibility is accepted for incidents arising from the use of this material.
